TILE INSERT Reversible Shower Drainer

by

TILE INSERT Reversible Shower Drainer
TILE INSERT Reversible Shower Drainer - Image 2

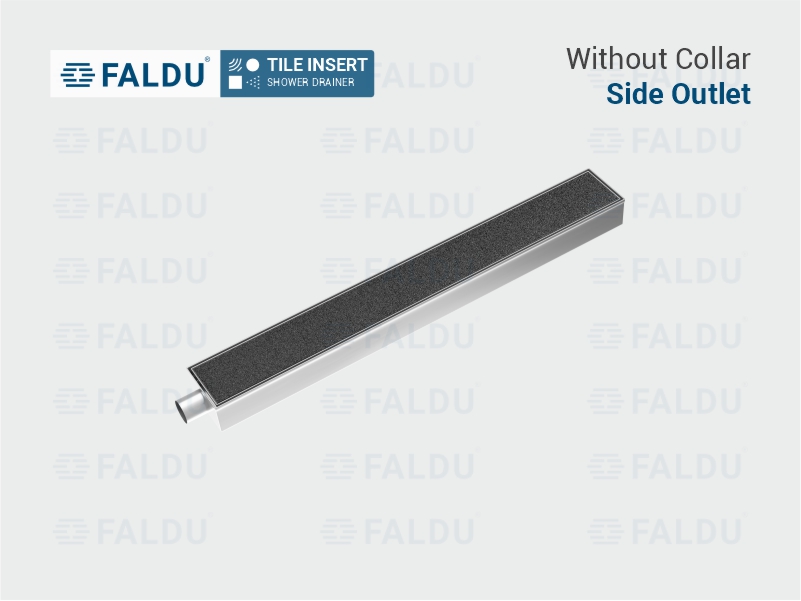

TILE INSERT Reversible Shower Drainer Without Collar & With Side Outlet FALDU 3
Shower Drainer Technical Drawings

Product Details
Length Options (mm) Width (mm) OutletDia. (mm) Height (mm)
300 / 450 / 600 / 800 / 900 / 1000 / 1200 / 1500 50 40 45
300 / 450 / 600 / 800 / 900 / 1000 / 1200 / 1500 75 50 45
300 / 450 / 600 / 800 / 900 / 1000 / 1200 / 1500 100 64.5 43
300 / 450 / 600 / 800 / 900 / 1000 / 1200 / 1500 125 64.5 43
Category:

Additional information

Thickness

Base: 1 mm Plate: 1 mm (Both can be customized
Outlet

40 – 64.5 mm
Flow Rate

40 – 65 Liters / Minute
Drainage Direction

Bottom Side / Center, Left / Right Side
